1550 nm, Up to 20 mW, DFB Laser, PM Output, DM Capable
1550 nm, Up to 20 mW, DFB Laser, PM Output, DM Capable

1550 nm, Up to 20 mW, DFB Laser, PM Output, DM Capable

$2,000.00
PART NUMBER : DFB-1550D-10-PM

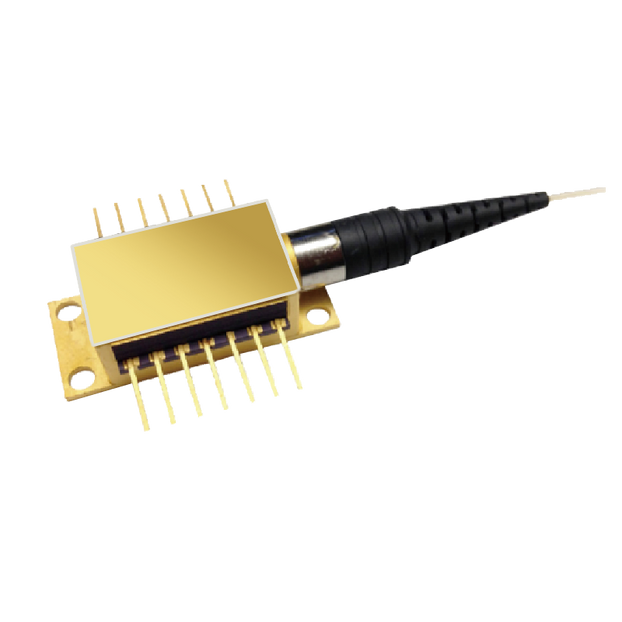

The DFB-1550D-PM is a single frequency laser coupled with polarization maintaining fiber at 1550 nm in a standard 14-pin butterfly package for direct modulation application. Built with Distributed Feed-Back Grating (DFB) as cavity reflector and Multi-Quantum Well (MQW) as the active layer, it provides a pure, single longitudinal mode, and extremely stable wavelength source up to 20 mW of output optical power with a high Side Mode Suppression Ratio  (SMSR). This laser can be used in applications such as a CW seeding the external modulation and coherence  interferometry, or directly modulation for signal transmission. The standard 14-pin butterfly package integrates a TEC, a thermistor, a back facet power monitor PD and an output isolator. Mode hop free version available upon request.

FEATURES
Polarization Maintaining Output
High Polarization Extinction Ratio
High SMSR
4 GHz Bandwidth
Low RIN Noise
Built in TEC & Thermistor

USE IN
Direct Modulation Laser (DML)
RF over Fiber (RFoF)
Hybrid Fiber-Coaxial (HFC)
General Laboratory and Research Use

Lead Time: Please contact sales
