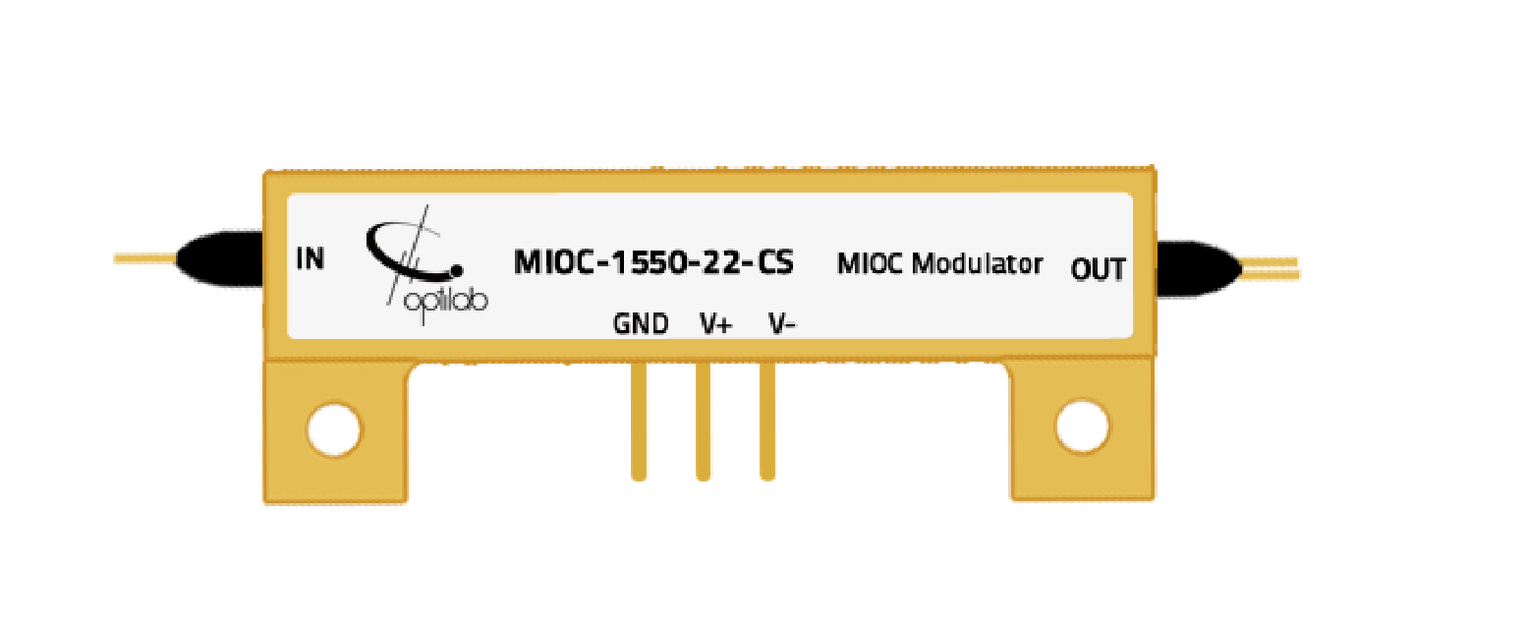

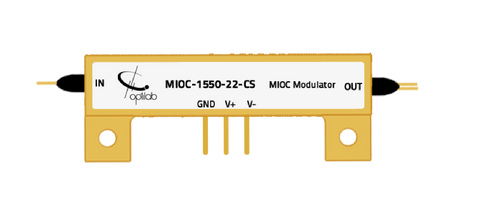

1550 nm, 22 mm, Multi-functional Integrated Optical Chip for Current Sensor

$99,999.00

PART NUMBER : MIOC-1550-22-CS

The Optilab MIOC-1550-22-CS is designed for fiber optic current sensing. This device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550-22-CS is fabricated with Annealed Proton Exchange (APE) optical waveguides. The MIOC-1550-22-CS features Polarization Extinction Ratio (PER) exceeding 20 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-22-CS assures high reliability and performance over wide temperature range,

FEATURES
1550±20 nm Operation
PM Input and Output Port
20 dB min. Polarization Extinction Ratio
4.5 V max. Low Vπ Voltage
-20 dB max. Polarization Crosstalk
4.5 dB max. Low Insertion Loss

USE IN
Fiber Optic Interferometers
Fiber Optic Current Sensor (FOCS)
Differential Phase Shifter
Hydrophone and Other Optic Sensitive Fields
Research and Development

Lead Time: Please contact sales
Datasheet
