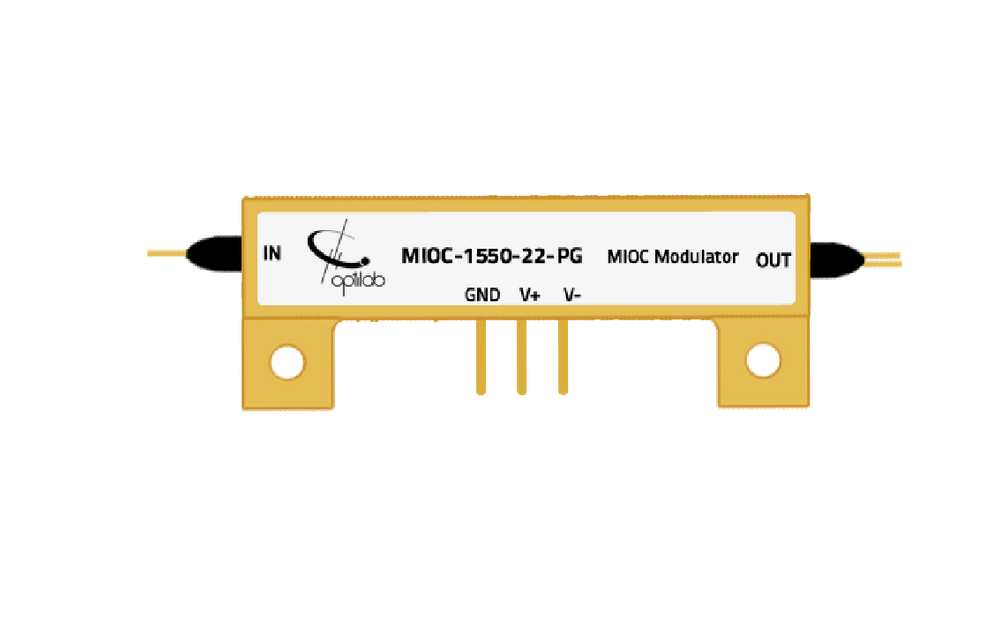

1550 nm, 22 mm, Multi-functional Integrated Bare Chip Packaged in Housing

$2,048.00

PART NUMBER : MIOC-1550-22-PG-A

The Optilab MIOC-1550-22-PG is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550-22-PG is fabricated with Proton Exchange (PE) optical waveguides. The MIOC-1550-22-PG features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-22-PG assures high reliability and performance over wide temperature range.

FEATURES
1550±20 nm Operation Wavelength
PM Input and Output Port
20 dB min. Polarization Extinction Ratio
4.3 V max. Low Vπ Voltage
-25 dB max. Polarization Crosstalk
3.8 dB Low Insertion Loss

USE IN
Fiber Optic Gyroscope (FOG)
Fiber Optic Current Sensor (FOCS)
Hydrophone and Other Optic Sensitive Fields
Research and Development

Lead Time: Please contact sales
Datasheet
