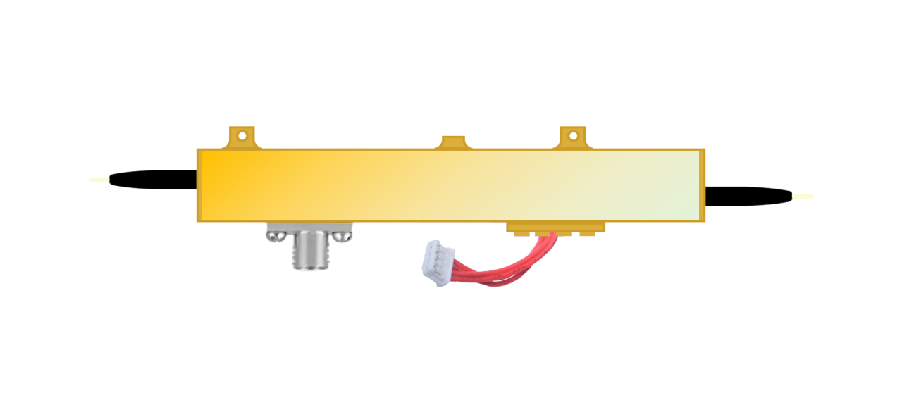

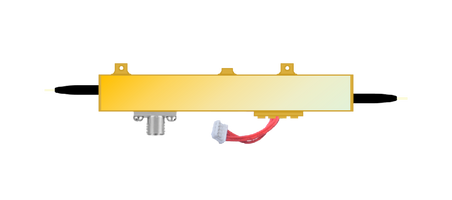

1550 nm, 20 GHz, Bandwidth Intensity Modulator, SM Output, DC Bias Pin
1550 nm, 20 GHz, Bandwidth Intensity Modulator, SM Output, DC Bias Pin

1550 nm, 20 GHz, Bandwidth Intensity Modulator, SM Output, DC Bias Pin

$1,205.00
PART NUMBER : IM-1550-20-P

The intensity modulator is designed for TDM and WDM  20 Gb/s transmission and can also be incorporated for analog modulation of up  to 20 GHz for satellite links, antenna remoting, and RF over fiber. It is a hands-on bias-stabilized lithium modulator that proves to be extremely stable for long  periods of time, and features excellent stability in a biased circuit, operating  from 1530 nm to 1610 nm. It has an excellent operating temperature tolerance  ranging from -30°C to +60°C, and its low insertion loss provides for its  maximum transmission power. The modulator uses a Polarization  Maintaining (PM) input fiber and a Single Mode (SM) output fiber. It features  separate RF and bias ports.

FEATURES
Low Insertion Loss
DC Bias Pin Option
Useful Bandwidth up to 20 GHz
Excellent Stability in Biased Circuit
1530 nm to 1610 nm Operating Wavelength
Wide Operating Temp. Range (-30°C to +60°C)

USE IN
Satellite Link
Antenna Remote
RF over Fiber
TDM and WDM up to 15 Gb/s
Analog Transmission up to 20 GHz

Lead Time: 2-3 Weeks
Datasheet
