1550 nm, 18 mm, Multi-functional Integrated Optical Chip for Current Sensor

$99,999.00

PART NUMBER : MIOC-1550-18-CS

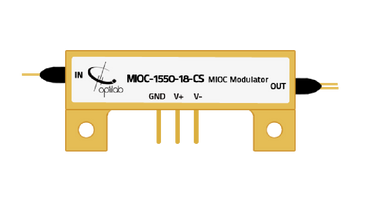

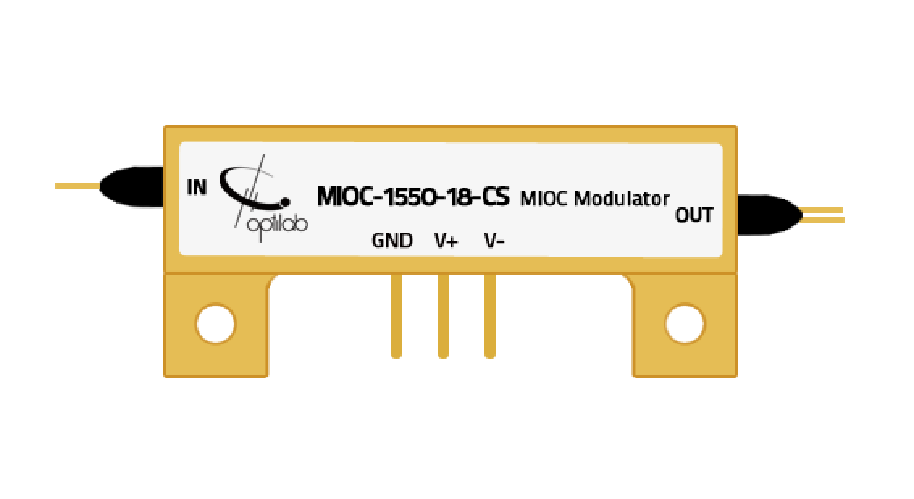

The Optilab MIOC-1550-18-CS is the key optic chip for fiber optic current sensing application. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550-18-CS is fabricated with Annealed Proton Exchange (APE) optical waveguides. The MIOC-1550-18-CS features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-18-CS assures high reliability and performance over wide temperature range and is fiber pigtailed (input/output) with a variety of PM fiber configurations.

FEATURES
1550±20 nm Operation
Low Insertion Loss
Polarization Extinction Ratio > 60 dB
Low Vπ Voltage
Low Polarization Crosstalk
PM Fiber Pigtails

USE IN
Fiber Optic Current Sensor (FOCS)
Hydrophone and Other Optic Sensitive Fields

Lead Time: Please contact sales
