1550 nm, 18 mm, Multi-functional Integrated Bare Chip Packaged in Housing

$1,848.00

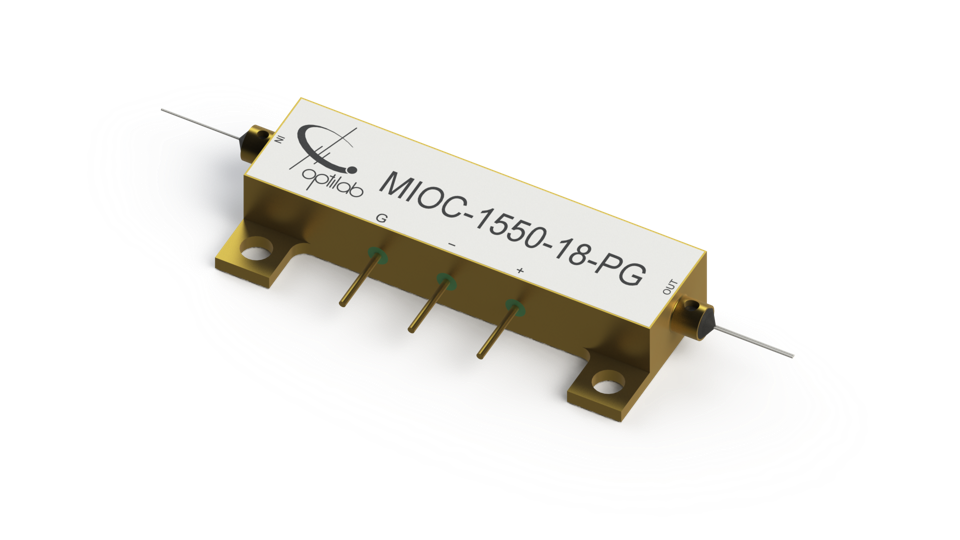

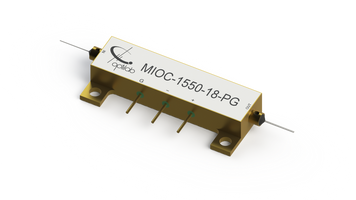

PART NUMBER : MIOC-1550-18-PG-A

The Optilab MIOC-1550-18-PG is the key component of Fiber Optic Gyroscope (FOG) for rotational rate sensing and inertial navigation systems. This Integrated Optic Chip (IOC) device is composed of a polarizer, a Y-junction coupler and dual electro optic phase modulators. Based on Lithium Niobate (LiNbO3), MIOC-1550-18-PG is fabricated with Annealed Proton Exchange (APE) optical waveguides. The MIOC-1550-18-PG features Polarization Extinction Ratio (PER) exceeding 60 dB that can minimize bias drift which results from polarization crosstalk induced non-reciprocity. The MIOC-1550-18-PG assures high reliability and performance over wide temperature range and is fiber pigtailed (input/output) with a variety of PM fiber configurations.

FEATURES
1550±20 nm Operation
Low Insertion Loss
Polarization Extinction Ratio > 60 dB
Low Vπ Voltage
Low Polarization Crosstalk
PM Fiber Pigtails

USE IN
Fiber Optic Gyroscope (FOG)
Fiber Optic Current Sensor (FOCS)
Hydrophone and Other Optic Sensitive Fields
Research and Development

Lead Time: Please contact sales
Datasheet
