Up to 100 mA, Universal Coaxial Laser Diode Controller
Up to 100 mA, Universal Coaxial Laser Diode Controller
Up to 100 mA, Universal Coaxial Laser Diode Controller
Up to 100 mA, Universal Coaxial Laser Diode Controller

Up to 100 mA, Universal Coaxial Laser Diode Controller

$1,045.00
PART NUMBER : ULDC-0100-MC

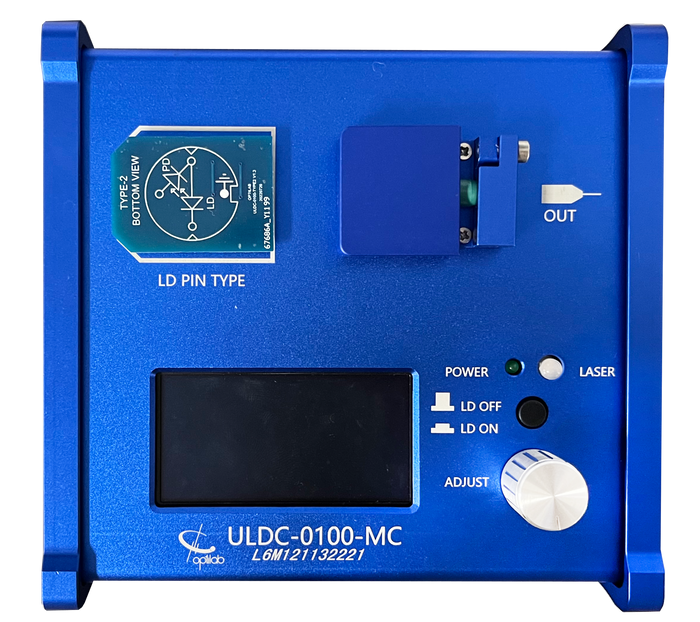

The Optilab ULDC-0100-MC is a fully integrated universal laser diode controller designed for the coaxial laser diode. This compact, easy to use laser diode driver module operates under a single + 5 V DC power supply. ULDC-0100-MC comes with a built in OLED display and a USB port for external PC control. This driver is compatible with both type 1 and type 2 pinout by switching the pinout daughter boards. The laser diode can be driven in a range of 0 to 100mA with a setting resolution of 1 mA and the internal PD current can be monitored.

FEATURES
Coaxial Socket with Magnetic Clip
Up to 100 mA LD Current
PD Current Monitor
On Board OLED Display
USB Port for External PC Control
Compatible with Type 1 & 2 Pinout

USE IN
Laser Diode Characterization
Research and Development
Laboratory Use
Failure Analysis

Lead Time: Please contact sales
